12' Long Heat & Condensate Type II Stainless Steel Exhaust Hood

$3,099.99

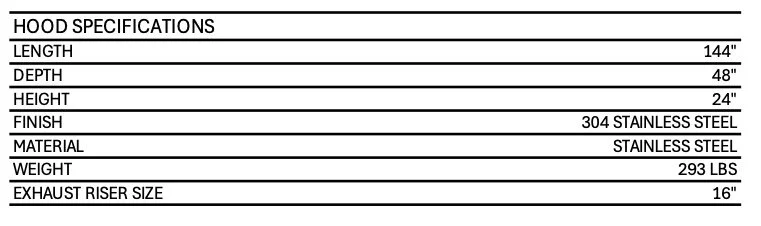

-144” Long x 48” Deep x 24” High Stainless Steel Hood with Full Perimeter Gutter and a Factory Installed 10” Round Exhaust Riser. Meets all code requirements in North America.

-Designed for equipment not producing grease laden vapors. Type II hoods are used for condensation or heat removal applications. Ideal for dishwashers and steam tables. ETL listed to US and Canadian safety standards.

-Constructed of heavy duty 304 stainless steel to ensure durability and longevity. Hood has a 700 degree temperature rating to accommodate high temperature commercial dish machines and/or appliances.

-Manufactured in the USA. Custom sizes available upon request. As all hoods are custom built, no returns or exchanges are accepted.

-144” Long x 48” Deep x 24” High Stainless Steel Hood with Full Perimeter Gutter and a Factory Installed 10” Round Exhaust Riser. Meets all code requirements in North America.

-Designed for equipment not producing grease laden vapors. Type II hoods are used for condensation or heat removal applications. Ideal for dishwashers and steam tables. ETL listed to US and Canadian safety standards.

-Constructed of heavy duty 304 stainless steel to ensure durability and longevity. Hood has a 700 degree temperature rating to accommodate high temperature commercial dish machines and/or appliances.

-Manufactured in the USA. Custom sizes available upon request. As all hoods are custom built, no returns or exchanges are accepted.

Restaurant Grease Rated Exhaust Fan- High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control- 24 3/4" Base, 0.75 HP 115 Volt Single Phase Motor, 1500-2200 CFM (MH-DU85HFA)
Restaurant Grease Rated Exhaust Fan- High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control- 24 3/4" Base, 0.75 HP 115 Volt Single Phase Motor, 1500-2200 CFM (MH-DU85HFA)
$1,249.99
Exhaust Fan Roof Curb- 23” square x 20” high, 18 gauge galvanized steel construction, vented bolt together flat roof curb (23" square)
Exhaust Fan Roof Curb- 23” square x 20” high, 18 gauge galvanized steel construction, vented bolt together flat roof curb (23" square)
$229.99

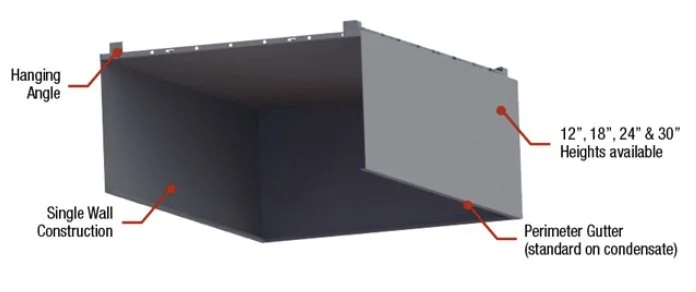

HOOD ADVANTAGES

  • Exhaust Flow Rates: Superior exhaust flow rates. A 12' Hood can operate at 150 CFM/ft or 1800 total CFM for 700 degree appliances.

  • ETL Listed: ETL Listed for use over 700°F surface temperatures. ETL Listed to US and Canadian safety standards, ETL Sanitation Listed and built in accordance with NFPA 96.

  • Condensate Applications: Integral 4-sided perimeter gutter and one drain standard for high-moisture exhaust.

  • Construction: Polished stainless steel on the interior and exterior of the front enhance aesthetics. Fully welded and polished front corners. Fabricated from Type 304 stainless steel.

  • Optional Lights: Incandescent, LED and fluorescent lights are available.

  • Reduced Weight: Rigid single wall end panels reduce weight.
